Bulb Shape1
Integrated LED
Color Temperature
Warm White to Natural Light
Warranty
5 Year Limited - Fixtures
Amps
1.250-0.432/1.458-0.504/1.667-0.576A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Efficacy
148.00/145.71/144.00 LPW
Feature 1
CCT and Wattage Selectable
Feature 2
Range Voltage 120V-347V
Feature 3
Integrated Sensor Port
Feature 4
EM Battery Backup Capable
Feature 5
6 Foot Supply and Low Voltage Whips
Feature 7
6kV Surge Protection and Wet Location Rated
Feature 9
50,000 Hour Functional Life
Incandescent Equivalent
1000W/1500W/2000W
Includes
Locking Hanging Hook; 6 Foot Whip
Installation Notes
Mounting Height: Up to 20 feet
Lens Material
Polycarbonate (PC)
Long Description

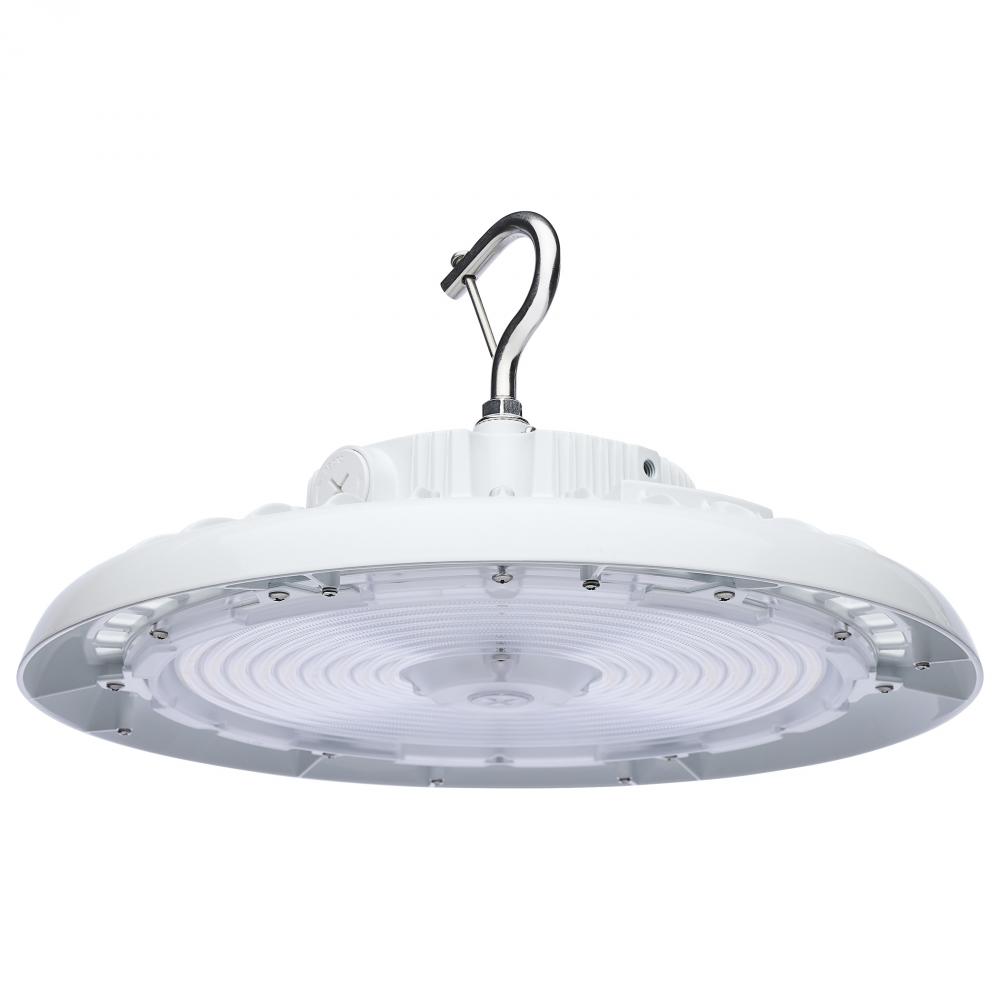

SATCO NUVO's 65-813 Round High Bay Field Selectable fixture in a white finish, offers an energy efficient and low-maintenance alternative to traditional HID fixtures. This luminary is field selectable, giving users the flexibility to choose from three
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Photocell
Optional Add-On
Replaceable Light Source
No
Romance Copy
SATCO NUVO's Round High Bay Field Selectable fixtures offer an energy efficient and low-maintenance alternative to traditional HID fixtures. These luminaires are field selectable, giving users the flexibility to choose from three wattage and three CCT
Safety Listing
cULus - Certified
Short Description
LED UFO HIGHBAY CCT & WATT ADJ
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Total Harmonic Distortion
15%
