Bulb Shape1
Integrated LED
Color Temperature
Warm White to Natural Light
Amps
1.250-0.541/1.458-0.631/1.667-0.722A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Efficacy
148.00/145.71/144.00 LPW
Feature 1
ColorQuick CCT Selectable
Feature 2
PowerQuick Wattage Selectable
Feature 3
0-10V Dimming Capable
Feature 4
6 Foot Whip with Dimming Wires Included
Feature 5
Locking Hook Mount Included
Feature 6
Additional Mounting Accessories Available
Feature 7
5 Year warranty
Incandescent Equivalent
1000W/1500W/2000W
Includes
Locking Hanging Hook; 6 Foot Whip
Installation Notes
Mounting Height: Up to 30 feet
Lens Material
Polycarbonate (PC)
Long Description

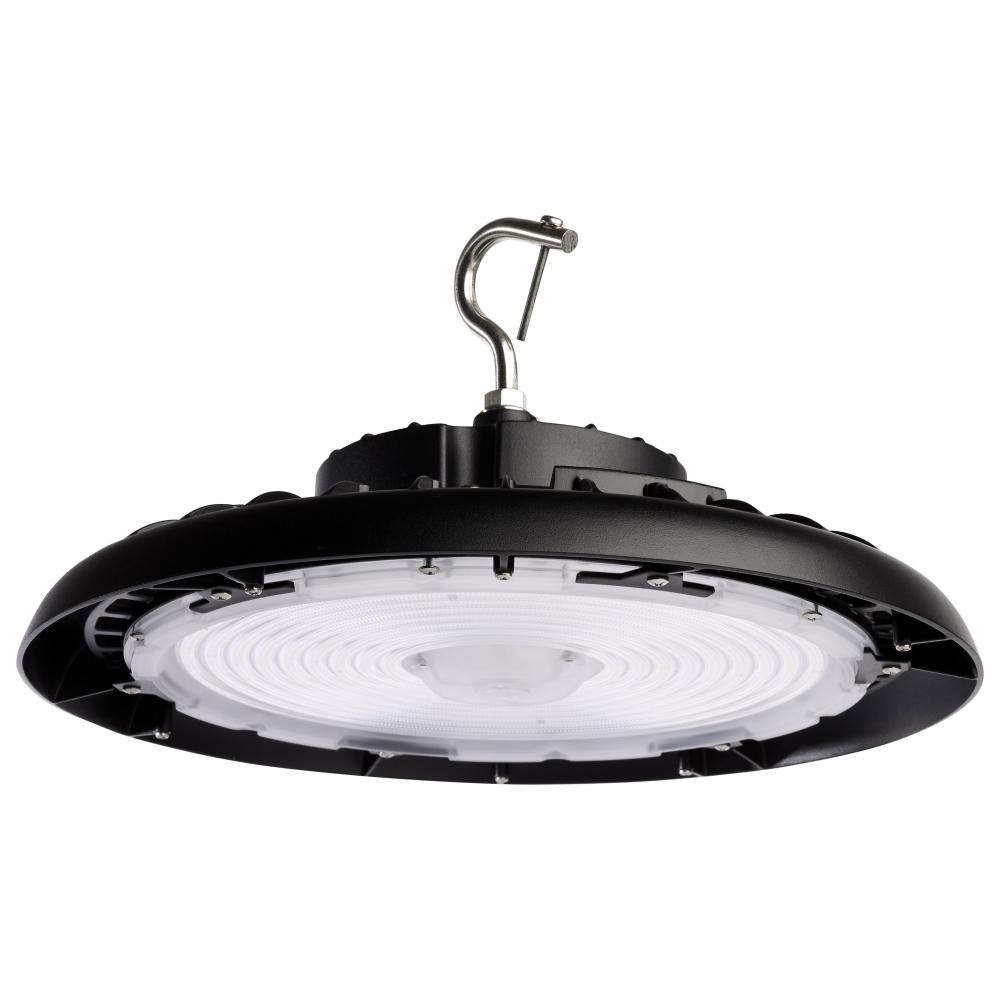

SATCO NUVO's 65-771R2 Round High Bay Field Selectable Fixture is an energy efficient and maintenance-free solution to traditional HID high bay fixtures. This luminaire features ColorQuick and PowerQuick technology allowing a choice of three wattages, 1
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +50C (+122F)
Photocell
Optional Add-On
Replaceable Light Source
No
Romance Copy
SATCO NUVO's Round High Bay Field Selectable fixtures are an energy efficient and maintenance-free solution to traditional HID high bay lighting. Field selectable, these luminaires feature ColorQuick and PowerQuick technology allowing a choice of three
Safety Listing
cULus - Certified
Short Description
LED UFO HIGHBAY CCT & WATT ADJ
Specification Notes
Input Current at 120V: 1.69A
Temperature (CCT)
3000K/4000K/5000K
Title 20 Compliant
Exempt
Total Harmonic Distortion
15%
