Bulb Dimmable
Yes-Dimmable
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Harmonized Codes
8539.52.0051
Lumens
1600L/1625L/1650L/1650L/1625L
Warranty
5 Year Limited - T8 LED Bulbs
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Daylight
Dimmable Down To
100 to 10 percent
Dimming Type
Reverse Phase or Phase Selectable
DLC Classification
Standard
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
168.42/171.05/173.68 LPW
Feature 10
5-CCT Selectable
Feature 4
Medium Bi-Pin Base
Feature 5
PET Coated Shatterproof Glass
Feature 6
120-277V Range Voltage
Feature 8
Type B Ballast Bypass
Feature 9
Low Optical Flicker - Less than 2-percent flicker
Flourescent Equivalent
32W
Installation Notes
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Double Ended;Single Ended
Long Description

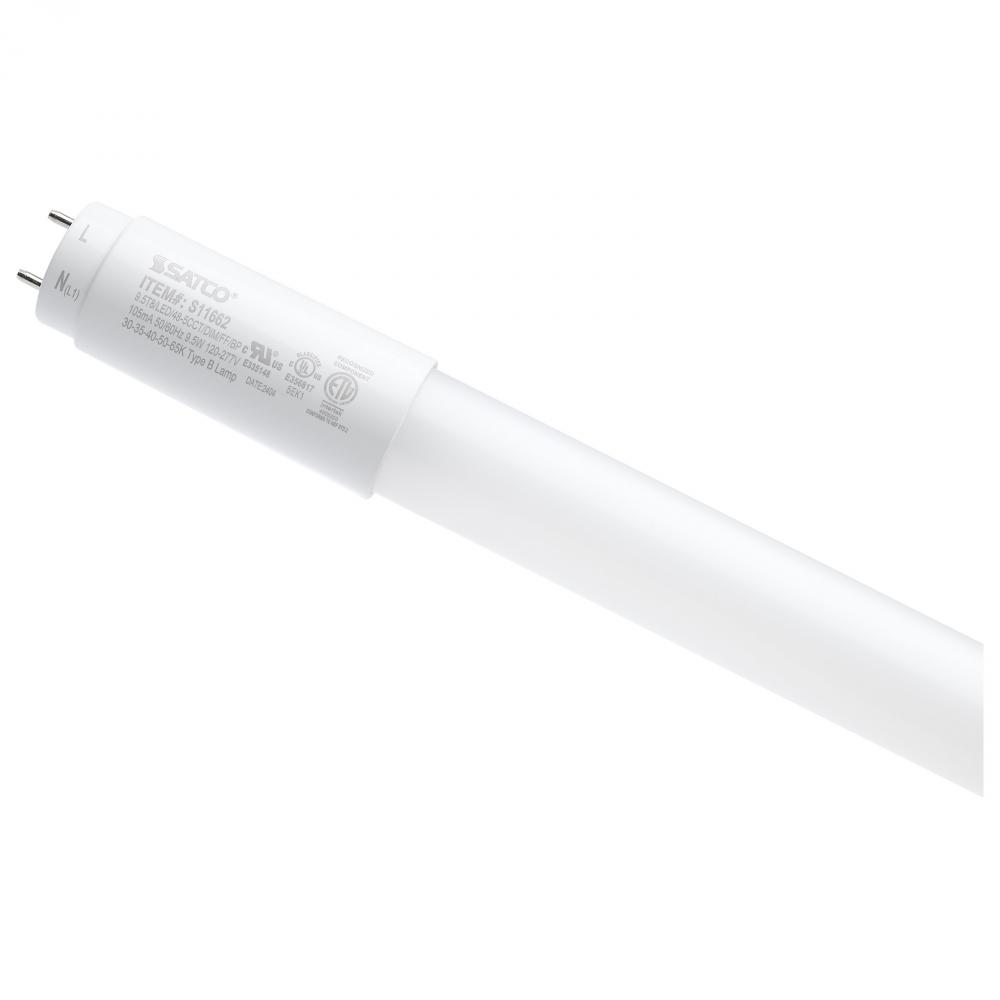

SATCO NUVO's S11662 LED 4-foot, 9.5W Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Exten
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Romance Copy
SATCO NUVO's LED Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extending the versatility
Shatter Proof Text
PET Coated
Short Description
9.5T8/LED/48-5CCT/DIM/LF/BP
Surge Protection
Built-in-surge protection - 0.7KV
Title 20 Compliant
Exempt
Total Harmonic Distortion
<20%
