9 Watt LED Direct Wire Downlight with Night Light; 4 Inch; Remote Driver; CCT Selectable; Dimmable;

Image may not reflect selected features

9 Watt LED Direct Wire Downlight with Night Light; 4 Inch; Remote Driver; CCT Selectable; Dimmable; (X6RPN)

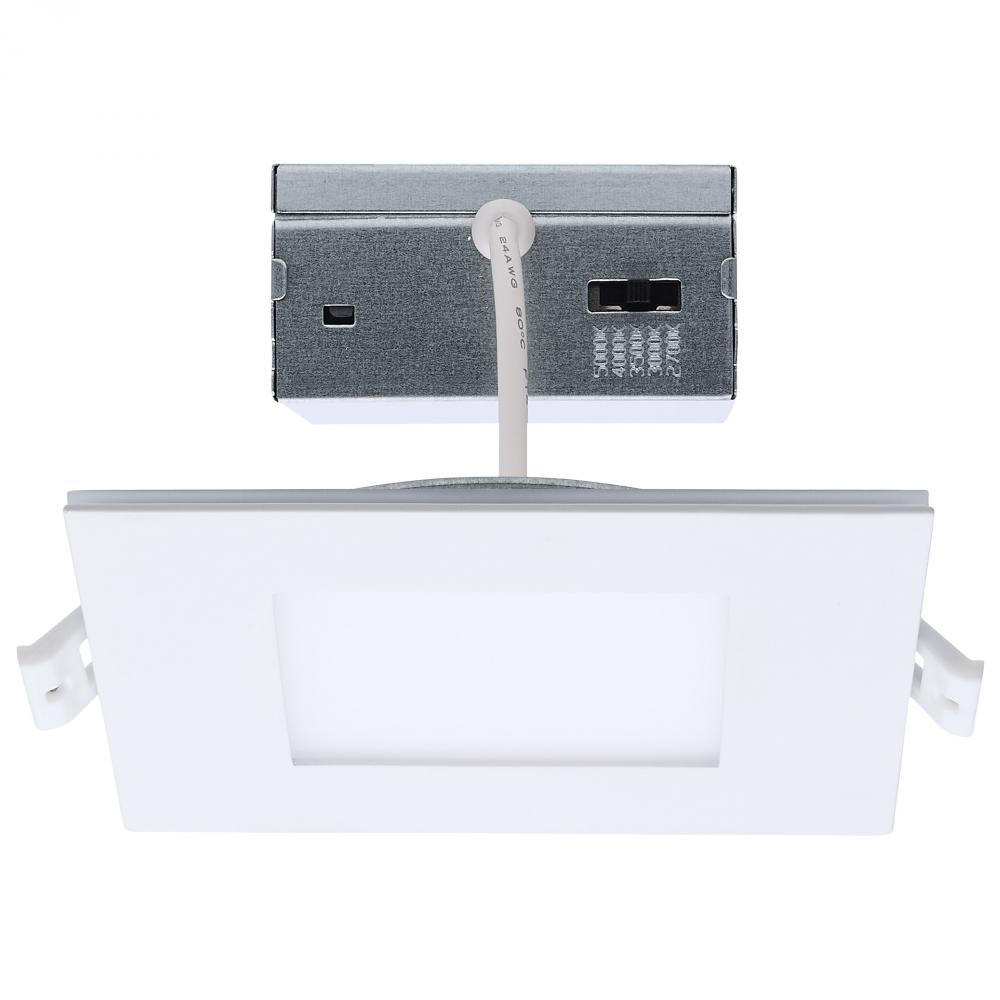

9 Watt LED Direct Wire Downlight with Night Light; 4 Inch; Remote Driver; CCT Selectable; Dimmable; Square; White Finish

Product Specification

Item #

X6RPN

Dimensions

Height: 0.95"

Width: 4.88"

Additional product details

Internal #

X6RPN

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Additional Info

Nightlight Watts - 3W; Nightlight Lumens - 50L; Nightlight Efficacy - 16.67 LPW

Bulb Hours

50000

Bulb Kelvin

Warm White to Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.8010

Length

4.88

Lumens

760L

Ship Carton Height

5.39

Ship Carton Length

6.65

Ship Carton Width

2.36

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.075A

ANSI Base

Integrated

Beam Spread

107

CA Prop-65

Lead

Carton Cubic Feet

0.049

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

California T24 Listed

Connection

Direct Wired

Country Of Origin

Vietnam

CRI

90+

Dimmable Down To

100 to 20 percent

Dimmable Function

120V only

Dimming Type

Phase cut

Efficacy

84.44 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-3798640

FCC Compliant

Yes

Feature 1

Integrated 3W Night Light

Feature 2

CCT Selectable 2700K/3000K/3500K/4000K/5000K

Feature 3

90 CRI

Feature 4

Dimmable

Feature 5

Wet location rated

Feature 6

IC Rated

Feature 7

Air Tight

Feature 8

White Aluminum Trim

Feature 9

Durable Acrylic Lens

Finish Family

White

Fixture shape

Square

Has Emergency Battery

IC Rated

Yes

Incandescent Equivalent

65W

Indoor Outdoor

Indoor

JA8 Compliant

Yes

Lens Finish

Frosted

Lens Material

Acrylic

Long Description

SATCO NUVO's LED 4-inch Square Downlights with Integrated Night Light provide a classic downlight with night light for additional ambiance control. Choose from five warm to cool CCTs at installation, connect an optional dimmer, or switch on-off-on at t

Material

Aluminum / Steel

Mounting Diameter

4.25

Mounting Height

1.97

Mounting Procedure

Ceiling

Operating Frequency

50/60Hz

Operating Temprature

-20C (-4F) to +45C (+113F)

Order In Multiples Of

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO NUVO's LED Downlights with Integrated Night Light provide a classic downlight with night light for additional ambiance control. Choose from five warm to cool CCTs at installation, connect an optional dimmer, or switch on-off-on at the wall plate

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

9WLED/DW/4/CCT-SEL/SQ/RD/NL

Sloped Ceiling Compatible

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Total Harmonic Distortion

<30%

Trim Color

White

Trim Material

Aluminum

Wattage Selectable

Weight Lb.

0.76

Finish
