Subcategory
LED Bulbs
, Other Recessed Ltg.
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Harmonized Codes
9405.42.6000
Warranty
5 Year Limited - LED Commercial Downlights
Amps
0.275-0.119/0.333-0.144/0.383-0.166A
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Ceiling Aperture
10.00 in. Cutout
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
Efficacy
75.76/75.00/76.09 LPW
Feature 1
Lawful for sale in California
Feature 2
Selectable wattage, lumens, and CCT
Feature 3
Remote driver and J-box with knockouts
Feature 4
Quick connect feature for easy installation
Feature 5
5 year limited warranty
Incandescent Equivalent
150W/200W/250W
Installation Notes
Can be installed with or without the rough-in plate (80-959)
Lens Material
Polycarbonate (PC)
Long Description

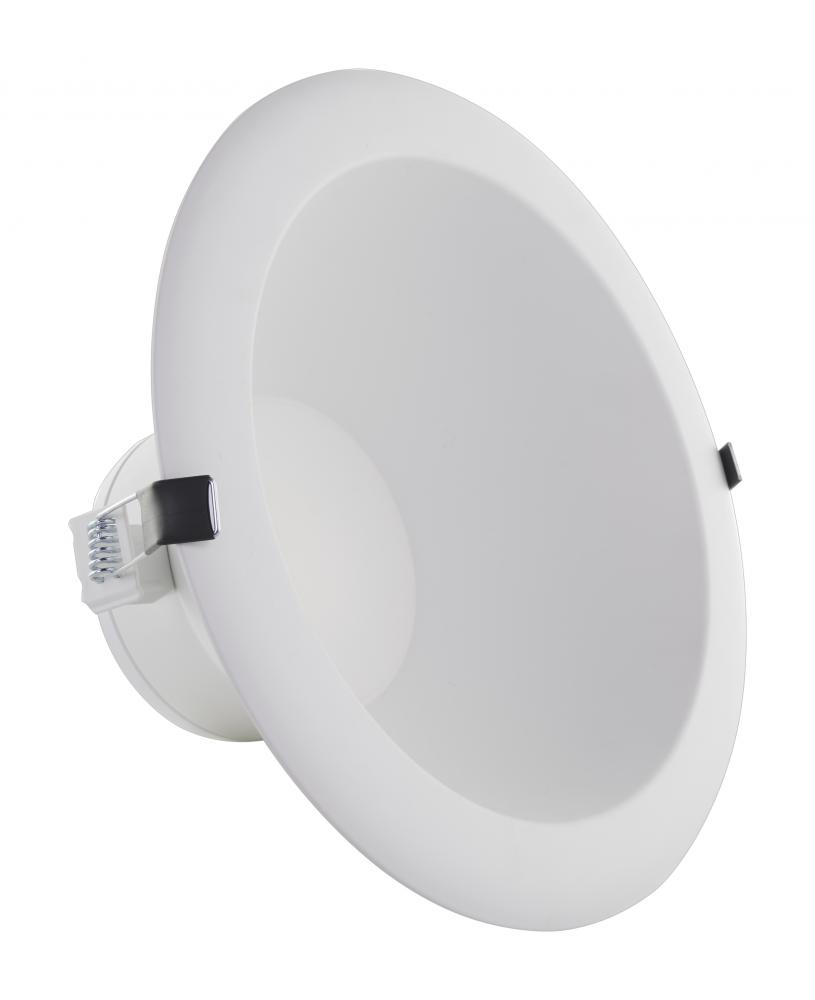

Satco's S11813 wattage selectable, 10 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations an
Mounting Procedure
Ceiling
Operating Temprature
-20C (-4F) to +40C (+104F)
Replaceable Light Source
No
Romance Copy
This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure
Safety Listing
cETLus - Listed
Short Description
46WLED/CDL/10/ADJ-CCT/80D
Specification Notes
Default CCT setting is 3000K. Default wattage setting is 46W.
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Exempt
