Bulb Dimmable
Yes-Dimmable
Harmonized Codes
8539.52.0051
Additional Info
Light Emitting Area of 325 degrees; System Wattage (Type A) - 28W
Ballast Bypass Direct
Direct
Ballasting Requirements
Ballast required, check compatibility
Bulb Base
Miniature Bi Pin
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Cool White
Dimmable Function
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Classification
Standard
DLC Primary Use
Replacement Lamps (Plug and Play) (UL Type A)
Enclosure Rating
Enclosed Rated Lamp
Feature 1
Over 50 percent Energy Savings Vs. Standard T5 Systems
Feature 2
Compatible with T5 HO Ballasts
Feature 3
Integrated Thermal Fuse at Pins
Feature 4
All Glass Tube Construction
Feature 5
Damp Location Rated
Feature 6
Enclosed Fixture Rated
Flourescent Equivalent
54W
Incandescent Equivalent
100W
Includes
Integrated thermal fuse at pins
Installation Notes
Not for use in vapor tight fixtures.
Integrated Features
Integrated thermal fuse at pins
Lamp Ballast Type A/B/C
Type A
Lamp End Type
Double Ended
Long Description

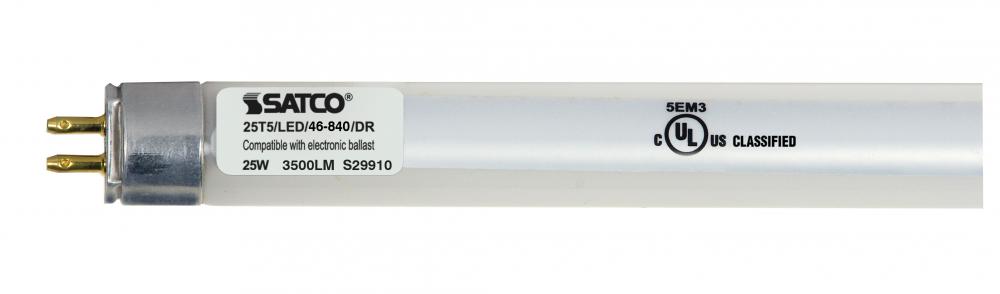

SATCO NUVO's S29910 4-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 25 watt, 4000K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins. T
Material
Aluminum / Glass
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Romance Copy
SATCO NUVO's LED Linear T5 Ballast Compatible Lamps come in 2-foot and 4-foot sizes, have over 50 percent energy savings compared to standard T5 systems, and provide enhanced safety thanks to the integrated thermal fuse. Our all-glass tube design not o
Short Description
25T5/LED/46-840/DR
Title 20 Compliant
Exempt
Total Harmonic Distortion
20%
