11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat

Image may not reflect selected features

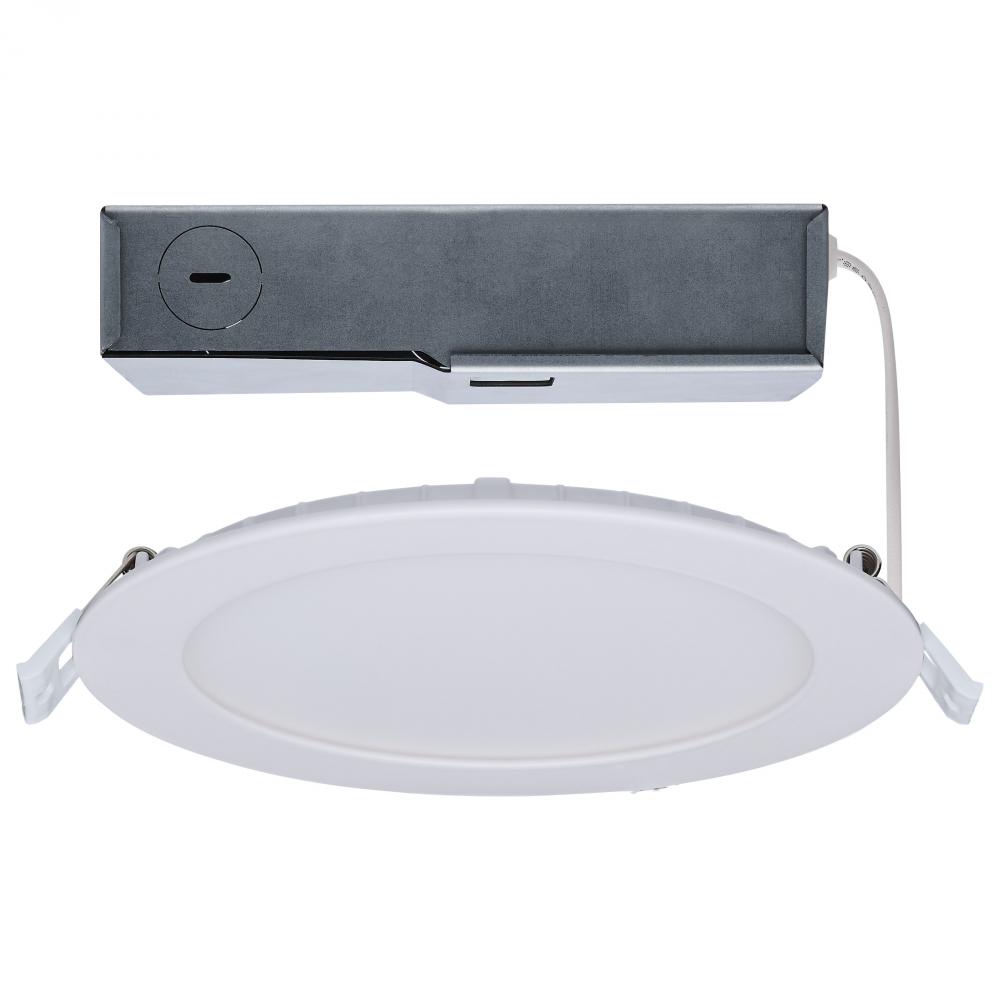

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat (X9KHJ)

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming

Product Specification

Item #

X9KHJ

Dimensions

Height: 1.34"

Width: 6.77"

Additional product details

Internal #

X9KHJ

Category

Recessed

Sub Category

Direct Wire

Style

Utility

Bulb Hours

50000

Bulb Kelvin

Warm White to Natural Light

Bulb Shape

Integrated LED

Bulb Type

LED

Diameter

6.77

Dimmable

Yes-Dimmable

Harmonized Codes

9405.11.6010

Lumens

1050L/1350L

Ship Carton Height

6.89

Ship Carton Length

6.81

Ship Carton Width

2.48

Warranty

5 Year Limited - Fixtures

Air Tight

Yes

Amps

0.092-0.040/0.125-0.054A

ANSI Base

Integrated

Beam Spread

108

CA Prop-65

Lead

Carton Cubic Feet

0.0673

Cartons Per Unit

CCT Selectable

Yes

CEC

California T24 2016 - 2022 JA8 Listed

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Ceiling Aperture

6.19 in. Cutout

Closet Rated

Yes

Connection

Direct Wired

Country Of Origin

Vietnam

CRI

90+

Dimmable Down To

100 to 10 percent

Dimmable Function

Triac at 120V / 0-10V at 120-277V

Dimming Type

Dual Dimming

Efficacy

95.45/90.00 LPW

ES Category

Downlight Recessed

ES Unique ID

ESID-3994345

FCC Compliant

Yes

Feature 1

Wattage Selectable for High & Very High Outputs

Feature 10

5 Year Warranty

Feature 2

5 CCT Selectable from Warm to Natural Light

Feature 3

Flat Face Design for Reduced Glare

Feature 4

NEC Compliant Junction Box

Feature 5

Dual Dimming

Feature 6

FT6 Cable for Commercial Plenums

Feature 7

90 CRI

Feature 8

Wet Location Rated

Feature 9

50,000 Hour Functional Life

Finish Family

White

Fixture shape

Round

IC Rated

Yes

Incandescent Equivalent

85W

Indoor Outdoor

Indoor and Outdoor

Installation Notes

Plenum Rated FT6 Cable

JA8 Compliant

Yes

Lens Finish

Matte Frosted

Lens Material

Acrylic

Long Description

The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. The S11691 6-inch round model features field-selectable five CCT and two wattage options (11W/15W), delivering both high output (HO) and very high output (VHO)

Material

Aluminum

Mounting Diameter

6.18

Mounting Height

1.61

NEC Compliance

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency

60Hz

Operating Temprature

-20C (-4F) to +40C (+104F)

Order In Multiples Of

Pack Type

Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. Featuring field-selectable CCT and wattage technology, these downlights provide high output (HO) and very high output (VHO) options, ensuring bright, efficient

Safety Listing

cETLus - Listed

SDS class

LED_Fixture

Short Description

15WLED/DW/6/FS/RND/FL/DD

Sloped Ceiling Compatible

Yes

Specification Notes

Default CCT Setting: 2700K; Default Wattage Setting: 15W

Temperature (CCT)

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Yes

Total Harmonic Distortion

<20%

Trim Material

Aluminum

Wattage Selectable

Yes

Weight Lb.

1.29
