Sub-Category
HID Replacements
Bulb Dimmable
Yes-Dimmable
Harmonized Codes
8539.52.0091
Burning Position
Universal
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
Cambodia
Dimmable Down To
100 to 20 percent
Dimmable Function
Dimmable with optional modules
DLC Classification
Standard; Standard; Standard
DLC ID
PL66LMJ6RES1; PLDRT7BU9AXX; PLUM173LZEGB
DLC Primary Use
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B); Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B); Replacement Lamps for High-Bay Luminaires (Type B)
Enclosure Rating
Enclosed Rated Lamp
Feature 1
MOL: 12.35 inches, MOD: 4.60 inches
Feature 3
Damp rated for indoor and outdoor use
Feature 4
Mogul Extended Base
Feature 5
Material: Aluminum
Feature 6
Lens Material: Polycarbonate
Feature 8
FCC and RoHS compliant
Feature 9
5-year limited warranty
Incandescent Equivalent
400W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
Lens Material
Polycarbonate (PC)
Long Description

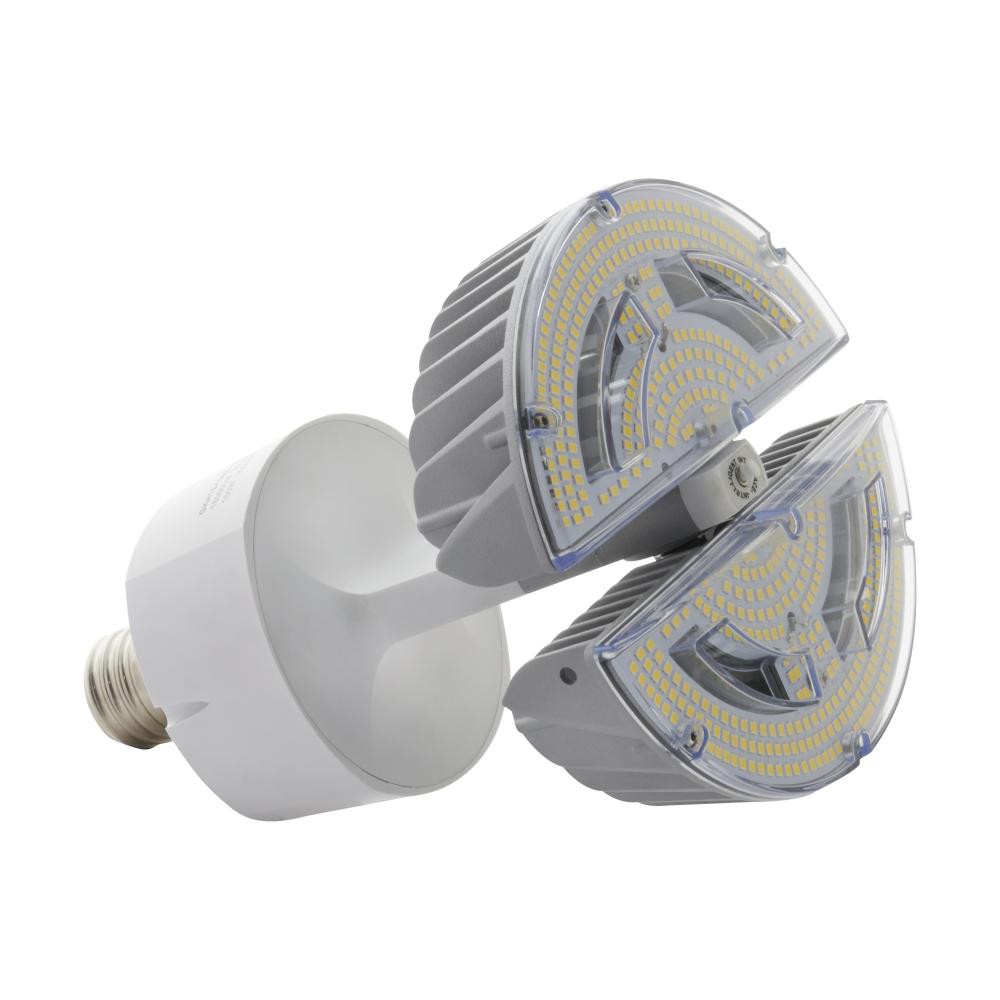

SATCO NUVO's S13127 100-watt multi-angle rotating base LED lamp with a folding panel design replaces HID, CFL and incandescent lighting indoors and outdoors. Applications consist of: high bays, low bays, garages, gymnasiums and other high ceiling appli
Material
Aluminum / Polycarbonate (PC)
Minimum Compartment Size
Length: 9.85 in. Width: 9.85 in. Depth: 11.93 in.
Operating Frequency
50/60Hz
Operating Temp
-29C (-20F) to +45C (+113F)
Romance Copy
SATCO NUVO's multi-angle rotating base LED lamp with a folding panel design replaces HID, CFL and incandescent lighting indoors and outdoors. Applications consist of: high bays, low bays, garages, gymnasiums and other high ceiling applications. Optiona
Short Description
100W/LED/HP360/850
Surge Protection
Built-in surge protection - 4KV
Thermal Management
When the lamp body temperature is > 203F, the output will reduce to 75 percent; When the driver temperature is >257F, the output will reduce to 55 percent.
Title 20 Compliant
Exempt
Total Harmonic Distortion
14.20%
