Additional Info
Candlepower: 230
Bulb Kelvin
Warm to Cool White
Bulb Shape
Integrated LED
Harmonized Codes
9405.10.8010
Warranty
5 Year Limited - Fixtures
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Ceiling Aperture
4.25 in. Cutout
Dimmable Down To
100 to 10 percent
Dimming Type
Reverse Phase or Phase Selectable
Feature 1
ColorQuick CCT Selectable
Feature 3
Wet Location Rated
Feature 6
Air Tight Rated
Feature 7
Title 24 Compliant
Feature 8
108-Degree Beam Angle
Incandescent Equivalent
45W
Installation Notes
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
Lens Material
Poly methyl methacrylate (PMMA)
Long Description

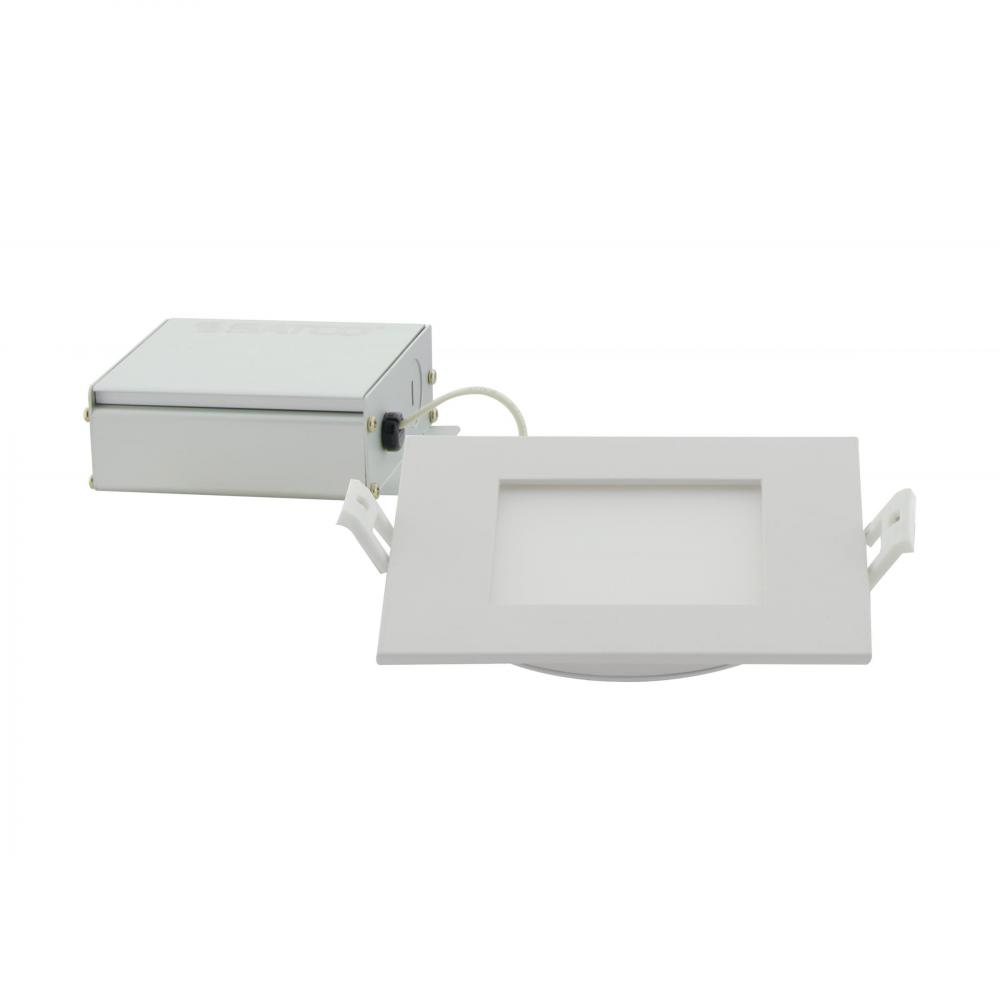

SATCO NUVO's S11829 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light.
Max Drywall Thickness
1/2 in.
Mounting Procedure
Ceiling
Operating Temprature
-20C (-4F) to +45C (+113F)
Rec Spacing Between Fixtures
3 ft. to 4 ft.
Replaceable Light Source
No
Romance Copy
SATCO NUVO's LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A va
Safety Listing
cETLus - Listed
Short Description
10WLED/DW/EL/4/CCT-SEL/SQ/RD
Sloped Ceiling Compatible
No
Specification Notes
Lumens (L) vary with color temperature (K): 2700K 600L / 3000K 620L / 3500K 650L / 4000K 650L / 5000K 630L
Temperature (CCT)
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant
Exempt
Total Harmonic Distortion
<20%
